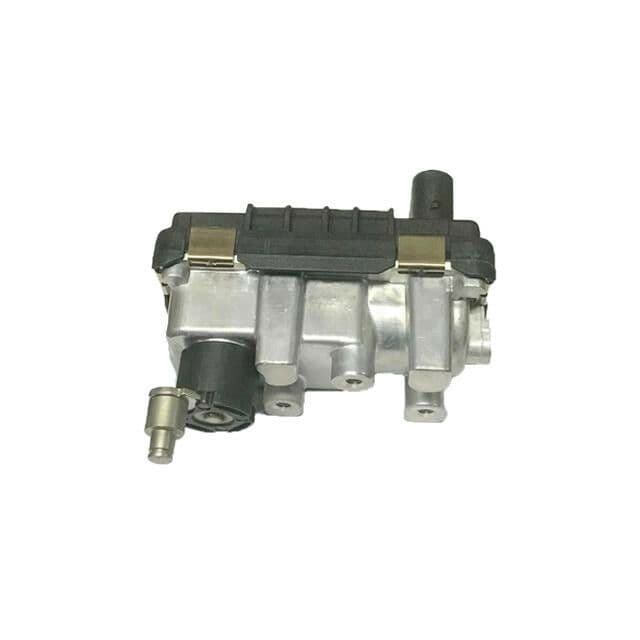

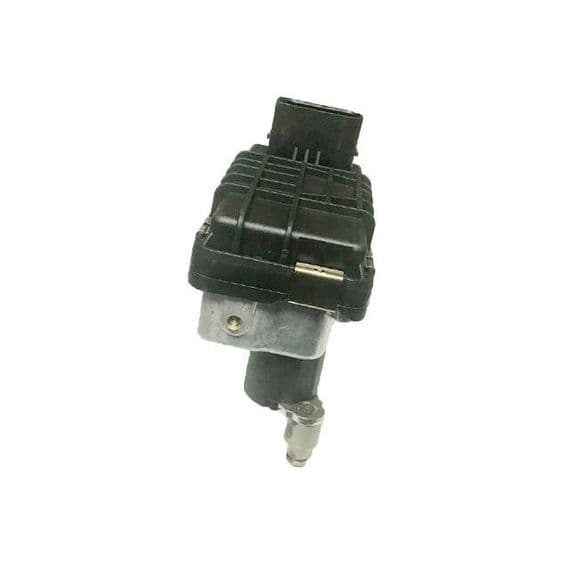

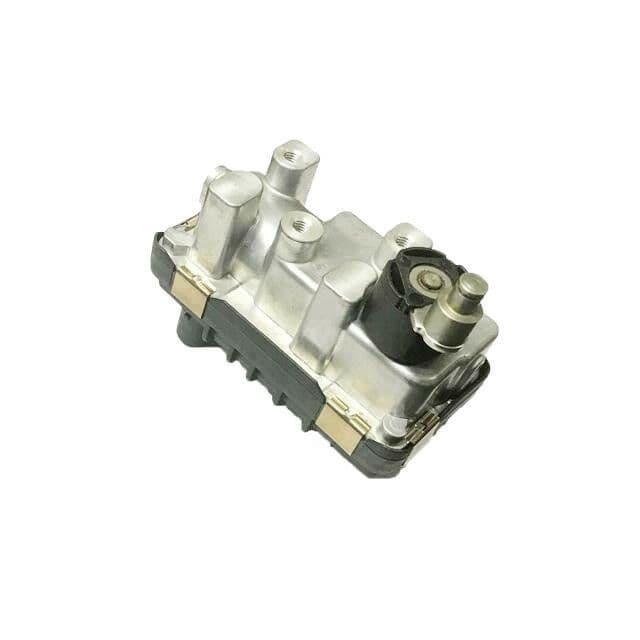

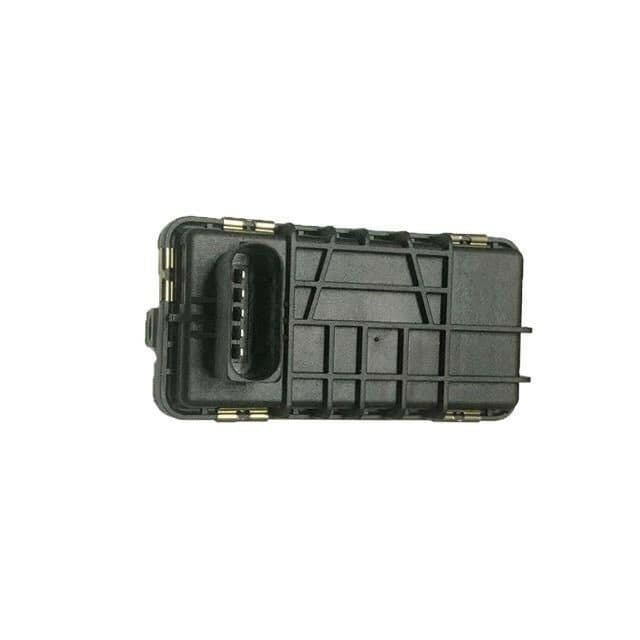

BMW 5 Series 530d Turbocharger Electronic Actuator Wastegate Hella Fits E60 E61

Name: BMW 5 Series 530d Turbocharger Electronic Actuator Wastegate Hella Fits E60 E61
Brand: GARRETT
SKU: G-13-B
Price: 144.00 GBP
Availability: InStock

BMW 5 Series 530d Turbocharger Electronic Actuator Wastegate Hella Fits E60 E61

£144.00 £120.00 (ex. VAT) RRP: £290.00

Stock Status: In Stock

BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella
Hella NO.: 6NW009550

G-Code: G-013, G-13, G013, G13

Turbo Part OE NO.

758351, 758351-0013, 758351

Information Specifications Reviews

Fits BMW 530d 730d E60 E61 E65 Turbocharger Electronic Actuator Wastegate Hella

Hella NO.: 6NW009550
G-Code: G-013,G-13,G013, G13

Turbo Part OE NO:
758351, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, GTB2260VK, 7794260, 7794259F, 7794259H, 7794259L, A7794259H, 7794259K10, 7794259M12, 7794259N13, 7794259O14, 7794260O14, 7794260Q16, 794260R17, 7794260014, A7794260014, 11657794260, 11657794259F, 1111657794259L, 11657794259K10, 11657794259M12, 11657794259N13, 11657794259O14, 1657794260O14, 11657794260Q16, 11657794260R17

Fit For :
Turbo actuator for BMW 525D E60 E61 3.0D 235HP 173Kw M57N2 2007-
Turbo actuator for BMW 525XD E60 E61 3.0XD 231HP 170Kw M57N3 2005-
Turbo actuator for BMW 525XD E60 E61 3.0XD 235HP 173Kw M57N4 2007-
Turbo actuator for BMW 530D E60 E61 3.0D 231HP 170Kw M57N5 2005-
Turbo actuator for BMW 530D E60 E61 3.0D 235HP 173Kw M57N6 2007-
Turbo actuator for BMW 530XD E60 E61 3.0XD 231HP 170Kw M57N7 2005-
Turbo actuator for BMW 530XD E60 E61 3.0XD 235HP 173Kw M57N8 2007-
Turbo actuator for BMW 730D E65 E66 3.0D 231HP 170Kw M57N9 2005-
Turbo actuator for BMW 730D E65 E66 3.0D 235HP 173Kw M57N10 2007-
Turbo actuator for BMW 730LD 3.0LD 231HP 170Kw M57N11 2005-
Turbo actuator for BMW 730LD E65 E66 3.0LD 235HP 173Kw M57N12 2007-

Fast Shipping!
From UK Stock with Fast Delivery
Please Check Part Number Before Ordering.
2 Years Parts Only Guarantee with Unlimited Mileage
Exchange Reconditioned Replacement Turbo Actuator from Stock
Turbo Actuator Repairs Includes the Worm Gear, Motor, and Electronics Pre-Calibrated
So Ready to Fit. Plug and Play No Coding or Programming Needed

Actuator Deposit
We Need £100 Deposit Before Positing Actuator
as This Is an Exchange Part, So We Need Your Old Used Faulty Actuator Back
message us before buy or we will message you after you buy
£100 Deposit Will Be Refunded When You Send Your Old Actuator to Us
or
you can send your part to us first ( then no deposit needed )

Hella Actuator Part Numbers G-221 & G-277 & G-33 etc,,,,
Can Be Found on the Aluminium Side of the Actuator

or Send Us Your Car Reg Number and We Will Check If This Is Right for Your Car

Electronic Turbo Actuator Problems Can Be Any or All of the Following

Turbo Actuators Have Been Known for Cutting Out and Losing Power When Hot and Cold,

with the Engine Management / Glow Plug Light or Coil Light Coming on the Dashboard,

at This Point the Car Will Go into Limp Mode / Limp Home Mode.

Also, Automatic Gearbox Problem Problems.

Loss of Power Under Acceleration, Actuator Arm Not Moving at All or When Hot, No Boost, Loss of Power

This Will Start Out by Happening Sometimes and Not at Other Times

But Eventually Your Car Will Be Stuck in Limp Mode, Until the Turbo Actuator Has Been Repaired or replaced

Before Fitting Our Actuator
Please Check the Actuator Rod Which Goes into the Turbo and Makes Sure the
Turbo Vanes Are Not Sticking to Stuck

How to Check If the Turbo Vanes
with the Engine Warm or Hot Take the Cir-clip Off the Arm on the Actuator Side So the Actuator Is Now Disconnected

from the Actuator Rod Then Push and Pull the Actuator Rod Arm Very Gently, to See If It Moves Freely or Sticks

at Any Point. You Will Probably Find It Sticks and Does Not Move the Full Range or Freely, Normally the Vanes Will Stick or Go Tight at Either End, Especially When Hot.

Domestic postage:
Royal Mail Tracked 24 (1 to 2 working days) Free
Royal Mail Special Delivery(TM) 1:00 pm (1 working day) £9.60 (orders before 3:00 pm)

Type:

TURBO ACTUATOR

UPC:

G-13

MPN:

6NW009550

EAN:

758351

Brand:

GARRETT

Condition:

Refurbished

Product Code:

G-13-B
