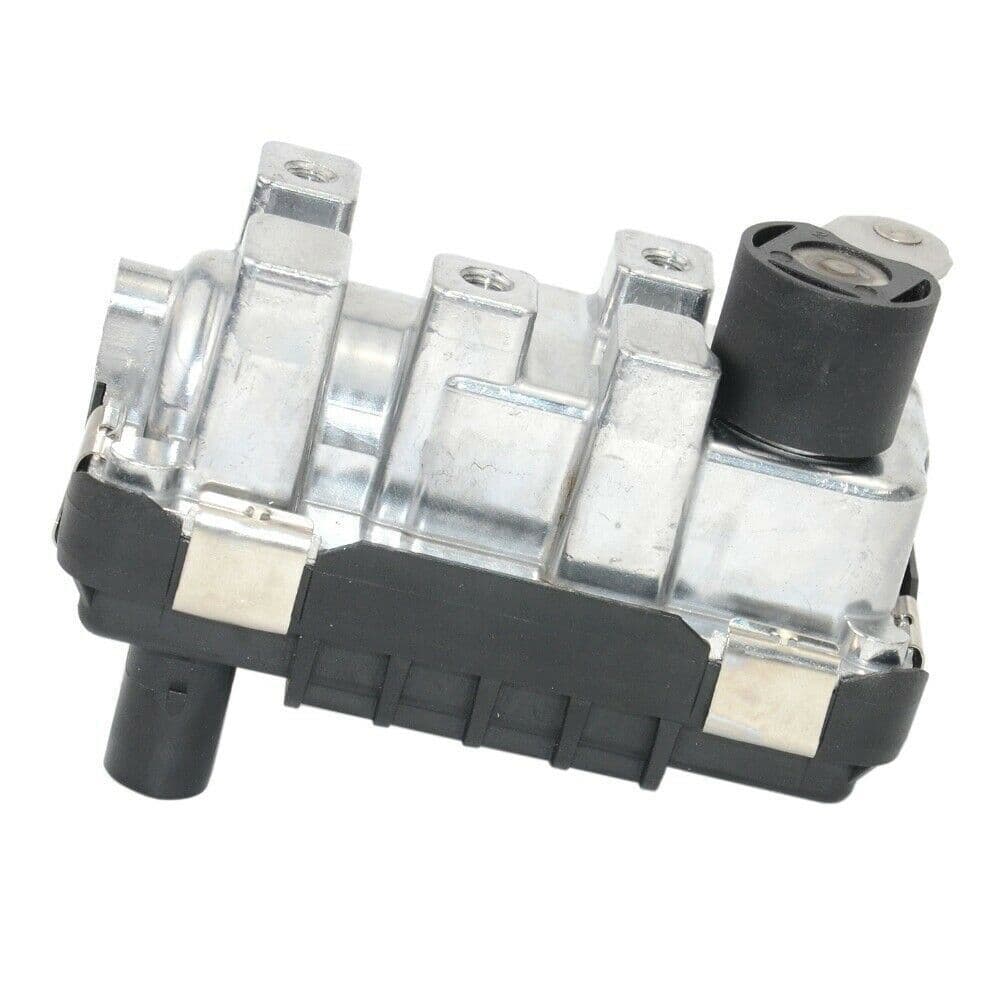

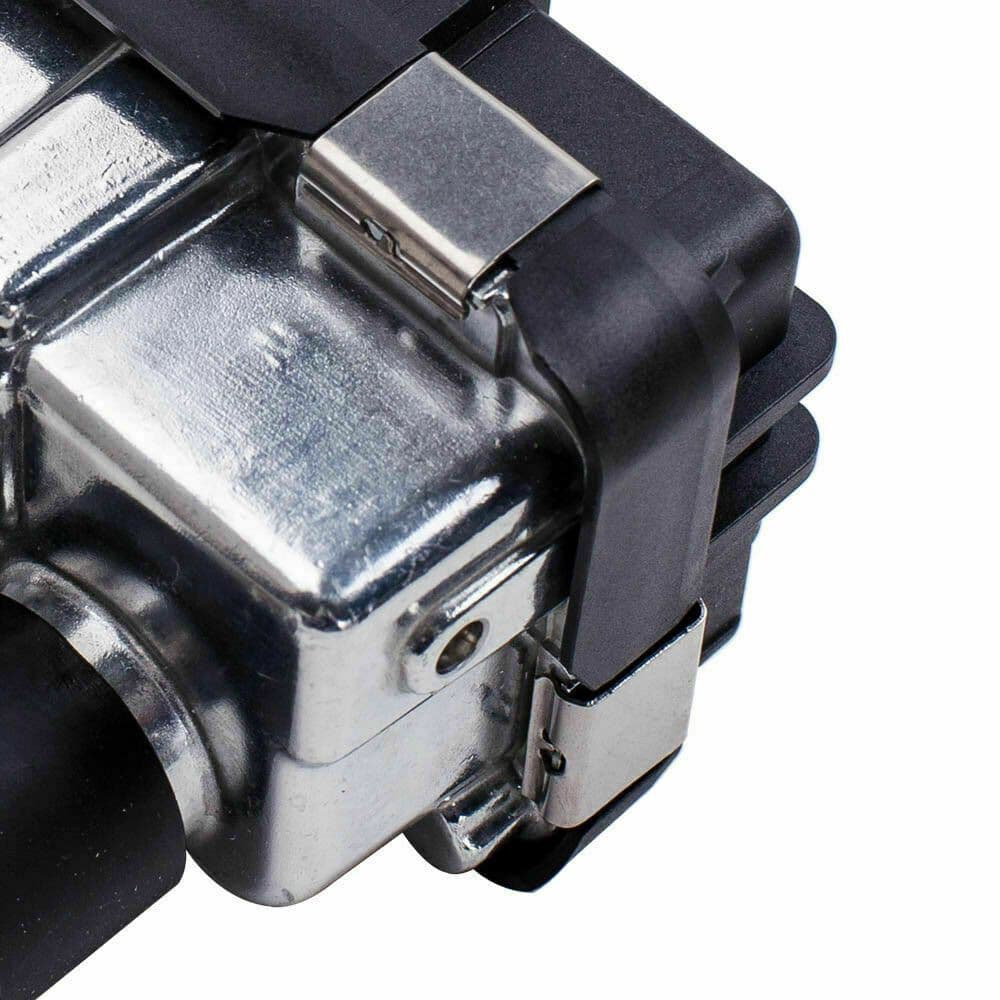

Audi A4 A5 Quattro 3.0 TDI Turbo Actuator 777159 776469-5005S G-21
Audi A4 A5 Quattro 3.0 TDI Turbo Actuator 777159 776469-5005S G-21
Audi A4 A5 Quattro 3.0 TDI Turbo Actuator 777159 776469-5005S G-21
Audi A4 A5 Quattro 3.0 TDI Turbo Actuator 777159 776469-5005S G-21
Audi A4 A5 Quattro 3.0 TDI Turbo Actuator 777159 776469-5005S G-21

Product Description

Turbo Actuator Wastegate for Audi A4 A5 Quattro 3.0TDI 777159 776469-5005S G-21


Reference Number:
G-Code: G-21 G21

Turbo Number: 776470, 776470-5003S, 776470-5001S, 776470-0003, 776470-0001, 776469-5005S, 777159-5003S, 7771595003S, 777159, 769705-0006, 769705

Turbo OEM Number: 059145722R, 95512302500 059145721B, 059145722S


Fit For :
AUDI A4 SERIE 3 2.7 TDI V6 163 Year 2007
AUDI A4 SERIE 3 2.7 TDI V6 190 Year 2007
AUDI A5 2.7 TDI V6 163 Year 2007
AUDI A5 2.7 TDI V6 190 Year 2007


Fast Shipping!
From UK Stock with Fast Delivery
Please Check Part Number Before Ordering.


2 Years Parts Only Guarantee with Unlimited Mileage

Exchange Reconditioned Replacement Turbo Actuator from Stock

Turbo Actuator Repairs Includes the Worm Gear, Motor, and Electronics Pre-Calibrated



Actuator Deposit
We Need £100 Deposit Before Positing Actuator
as This Is an Exchange Part, So We Need Your Old Used Faulty Actuator Back
£100 Deposit Will Be Refunded When You Send Your Old Actuator to Us
or
you can send your part to us first ( then no deposit needed )




Hella Actuator Part Numbers G-221 & G-277 & G-33 etc,,,,

Can Be Found on the Aluminium Side of the Actuator

or Send Us Your Car Reg Number and We Will Check If This Is Right for Your Car


Electronic Turbo Actuator Problems Can Be Any or All of the Following

Turbo Actuators Have Been Known for Cutting Out and Losing Power When Hot and Cold,

with the Engine Management / Glow Plug Light or Coil Light Coming on the Dashboard,

at This Point the Car Will Go into Limp Mode / Limp Home Mode.

Also, Automatic Gearbox Problem Problems.

Loss of Power Under Acceleration, Actuator Arm Not Moving at All or When Hot, No Boost, Loss of Power

This Will Start Out by Happening Sometimes and Not at Other Times

But Eventually Your Car Will Be Stuck in Limp Mode, Until the Turbo Actuator Has Been Repaired or replaced


Before Fitting Our Actuator

Please Check the Actuator Rod Which Goes into the Turbo and Makes Sure the

Turbo Vanes Are Not Sticking to Stuck

How to Check If the Turbo Vanes

with the Engine Warm or Hot Take the Cir-clip Off the Arm on the Actuator Side So the Actuator Is Now Disconnected

from the Actuator Rod Then Push and Pull the Actuator Rod Arm Very Gently, to See If It Moves Freely or Sticks

at Any Point. You Will Probably Find It Sticks and Does Not Move the Full Range or Freely, Normally the Vanes Will Stick or Go Tight at Either End, Especially When Hot.



Domestic postage:
Royal Mail Tracked 24 (1 to 2 working days)                         Free
Royal Mail Special Delivery(TM) 1:00 pm (1 working day)  £9.60  (orders before 2:00 pm)



Specifications

Type
TURBO ACTUATOR
UPC
G-21
MPN
G-21
EAN
777159
Brand
GARRETT
Condition
Refurbished
Product Code
EAG-21-A
Weight
0.5kg

Delivery & Returns

Royal Mail 24 - Free

Royal Mail Special Delivery - £9.60

World Wide - £60

UPS Next Day - £15.99

Customer Reviews

Audi A4 A5 Quattro 3.0 TDI Turbo Actuator Wastegate 777159 776469-5005S G-21 OEM

Item in Stock (30 Available)

Product Code EAG-21-A

Turbo Actuator Wastegate for Audi A4 A5 Quattro 3.0TDI 777159 776469-5005S G-21
Reference Number:

G-Code: G-21 G21
Turbo Number: 776470, 776470-5003S, 776470-5001S, 776470-0003, 776470-0001, 776469-5005S, 777159-5003S
